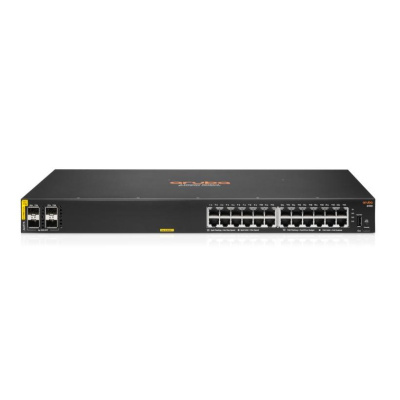

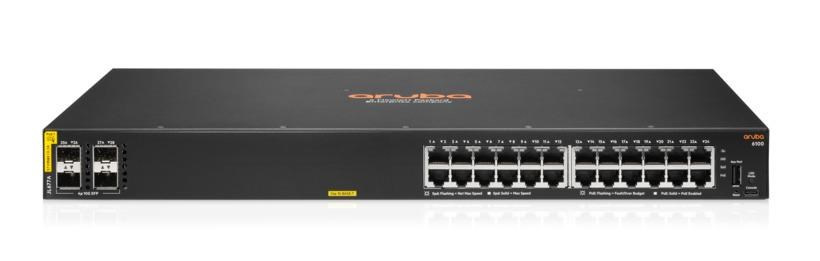

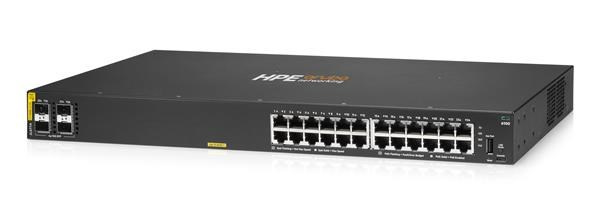

Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch JL677AR RENEW
Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A) Specifications
The HPE FlexNetwork 5130 EI Switch Series comprises Gigabit Ethernet switches that support static and RIP Layer 3 routing, diversified services, and IPv6 forwarding, as well as provide four 10-Gigabit Ethernet (10GbE) interfaces.
Unique Intelligent Resilient Fabric (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in small data centers.
High availability, simplified management, and comprehensive security control policies are among the key features that distinguish this series.
Description
- 24x 10/100/1000BASE-T ports
- 4x 1G/10G SFP+ ports
- Supports PoE Standards IEEE 802.3af, 802.3at (Class 4 PoE)
- 1x USB-C Console port
- 1x USB Type-A Host port
Power Supplies
- Fixed power supply (500W)
- Up to 370W of Class 4 PoE power
Fans
Fixed fans
Physical Characteristics
- Dimensions (H x W x D): 4.39 cm x 44.2 cm x 26.82 cm (1.73" x 17.4" x 10.56")
- Weight: 4.19 kg (9.24 lbs)
Additional Specifications
- CPU: Dual Core ARM Cortex A9 @ 1016 MHz
- Memory: 4 GB DDR3 RAM
- Flash Storage: 16 GB eMMC
- Packet Buffer: 12.38 MB (4.5 MB Ingress / 7.875 MB Egress)
Performance
- Switching Capacity: 128 Gbps
- Throughput Capacity: 95.2 Mpps
- Average Latency (64-byte packets): 1 Gbps: 1.5 µSec, 10 Gbps: 1.8 µSec
- Switched Virtual Interfaces (dual stack): 16
- IPv4 Host Table (ARP): 1,024 entries
- IPv6 Host Table (ND): 512 entries
- IPv4 Unicast Routes: 512 entries
- IPv6 Unicast Routes: 512 entries
- MAC Table Capacity: 8,192 entries
- IGMP Groups: 512
- MLD Groups: 512
- ACL Entries (ingress): IPv4: 256 / IPv6: 128 / MAC: 256
Environment
- Operating Temperature: 0°C to 45°C (32°F to 113°F) up to 5,000 ft (1.5 km), derate -1°C per 1,000 ft from 5,000 to 10,000 ft
- Operating Relative Humidity: 15% to 95% (non-condensing at 40°C)
- Non-Operating Temperature: -40°C to 70°C (-40°F to 158°F) up to 15,000 ft (4.6 km)
- Non-Operating Humidity: 15% to 90% (non-condensing at 65°C)
- Max Operating Altitude: 3,000 m (10,000 ft)
- Max Non-Operating Altitude: 4,600 m (15,000 ft)
- Acoustic Noise: 3.9 Bel (sound power), 24.3 dB (sound pressure at bystander)
- Primary Airflow: Side-to-side
Electrical Characteristics
- Frequency: 50 / 60 Hz
- AC Voltage: 100-127 VAC / 200-240 VAC
- Current: 4.6 A / 2.3 A
- Power Consumption (230 VAC): Idle 22.9 W, Max without PoE 32.7 W, Max with PoE 455 W
Safety Certifications
- UL 60950-1; IEC 60950-1
- EN 60950-1; CAN/CSA-C22.2 No. 60950-1
- EN 60825-1
- UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014
Emissions & Immunity
- VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032:2015 + AC:2016 / CISPR-32, Class A
- Laser Safety: EN 60825-1:2007 / IEC 60825-1:2007 Class 1 Laser Products (applies to optical transceivers)
- Immunity Standards: CISPR 24 / CISPR 35; EN 55024:2010 / EN 55035:2017
- Electrostatic Discharge (ESD): IEC 61000-4-2
- Radiated Immunity: IEC 61000-4-3
- EFT/Burst Immunity: IEC 61000-4-4
- Surge Immunity: IEC 61000-4-5
- Conducted Immunity: IEC 61000-4-6
- Power Frequency Magnetic Field: IEC 61000-4-8
- Voltage Dips and Interruptions: IEC 61000-4-11
- Harmonics: EN 61000-3-2, IEC 61000-3-2
- Flicker: EN 61000-3-3, IEC 61000-3-3
Mounting and Enclosure
Supports mounting in EIA-standard 19-inch telco racks or equipment cabinets (rack-mount kit available), horizontal surface mounting, or wall mounting.
Řada přepínačů Aruba CX 6100 je moderní rodina přístupových přepínačů základní úrovně ideální pro pobočky, střední podniky a sítě SMB. Přepínače Aruba CX 6100, navržené pro spolehlivý, jednoduchý a bezpečný přístup, poskytují pohodlné řešení kabelového přístupu pro podnikové sítě podporující IoT, mobilní a cloudové aplikace.
Technické parametry
- 24x 10/100/1000Base-T porty
- 4x 1/10G SFP porty
- 1x USB-C Console Port, 1x USB Type-A Host port
- Interní (pevný) napájecí zdroj (500 W), pevné ventilátory
- Maximální výkon: 32,7 W bez PoE, 455 W s PoE
- Vstupní napětí: 100-127 VAC / 200-240 VAC
- Přepínací kapacita: 128 Gb/s
- Propustnost: 95,2 Mpps
- Procesor: Dual Core ARM Cortex A9 @ 1016 Mhz
- Paměť a Flash: 4 GB DDR3, 16 GB eMMC
- Možnost PoE: Až 370W Class 4 PoE
- Rozměry: 4,39 x 44,2 x 26,82 cm
- Hmotnost: 4,2 kg
| Specifications | Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A) |
| Description | 24x ports 10/100/1000BASE-T Ports 4x 1G/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host port |
| Power supplies | Fixed power supply (500W) Up to 370W of Class 4 PoE Power |
| Fans | Fixed fans |
| Physical characteristics | |
| Dimensions | (H) 4.39 cm (W) 44.2 cm (D) 26.82 cm (1.73" x 17.4" x 10.56") |
| Configuration Weight | 4.19kg (9.24 lbs) |
| Additional Specifications | |
| CPU | Dual Core ARM Cortex A9 @ 1016 Mhz |
| Memory and Flash | 4 GB DDR3 16 GB eMMC |
| Packet Buffer | 12.38MB (4.5MB Ingress/7.875MB Egress) |
| Performance | |
| Model Switching Capacity | 128 Gbps |
| Model Throughput Capacity | 95.2 Mpps |
| Average Latency (LIFO-64- bytes packets) | 1 Gbps: 1.5 µSec , 10 Gbps: 1.8 µSec |
| Switched Virtual Interfaces (dual stack) | 16 |
| IPv4 Host Table (ARP) | 1,024 |
| IPv6 Host Table (ND) | 512 |
| IPv4 Unicast Routes | 512 |
| IPv6 Unicast Routes | 512 |
| MAC Table Capacity | 8,192 |
| IGMP Groups | 512 |
| MLD Groups | 512 |
| IPv4/IPv6/MAC ACL Entries (ingress) | 256 / 128 / 256 |
| Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A) | |
| Environment | |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) |
| Operating Relative Humidity | 15% to 95% at 104°F (40°C) non-condensing |
| Non-Operating | -40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) |
| Non-Operating Storage Relative Humidity | 15% to 90% @ 149°F (65°C) non-condensing |
| Max Operating Altitude | 10000 feet (3 km) Max |
| Max Non-Operating Altitude | 15000 feet (4.6 km) Max |
| Acoustic | Sound Power, LWAd = 3.9 Bel Sound Pressure, LpAm (Bystander)= 24.3 dB |
| Primary Airflow | Side-to-side |
| Electrical Characteristics | |
| Frequency | 50 / 60 Hz |
| AC Voltage | 100-127 VAC / 200-240 VAC |
| Current | 4.6 A / 2.3 A |
| Power Consumption (230 VAC) | Idle: 22.9W Max Power (w/o PoE): 32.7W Max Power (w/ PoE): 455W |
| Safety | |
| UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014 | |
| Emissions | |
| VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A | |
| Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A) | |
| Lasers | |
| EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only) | |
| Immunity | |
| Generic | CISPR 24 / CISPR 35 |
| EN | EN 55024:2010 / EN 55035:2017 |
| ESD | IEC 61000-4-2 |
| Radiated | IEC 61000-4-3 |
| EFT/Burst | IEC 61000-4-4 |
| Surge | IEC 61000-4-5 |
| Conducted | IEC 61000-4-6 |
| Power frequency magnetic field | IEC 61000-4-8 |
| Voltage dips and interruptions | IEC 61000-4-11 |
| Harmonics | EN 61000-3-2, IEC 61000-3-2 |
| Flicker | EN 61000-3-3, IEC 61000-3-3 |
| Mounting and Enclosure | |
| Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting | |
